Shenghua XLPE Insulated Power Cable 21/35kV Abrasion-Resistant IEC-Certified

중국 Shenghua XLPE Insulated Power Cable 21/35kV Abrasion-Resistant IEC-Certified 협력 업체
Shenghua XLPE Insulated Power Cable 21/35kV Abrasion-Resistant IEC-Certified 협력 업체 Shenghua XLPE Insulated Power Cable 21/35kV Abrasion-Resistant IEC-Certified 협력 업체

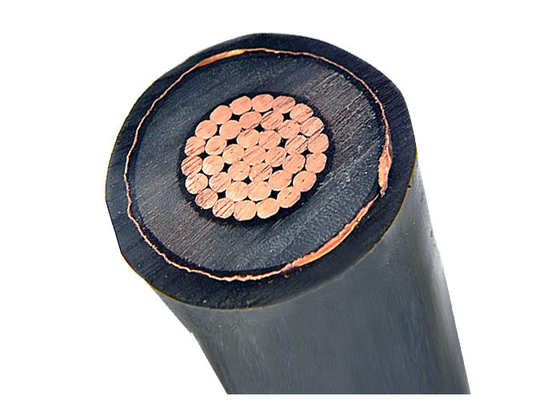

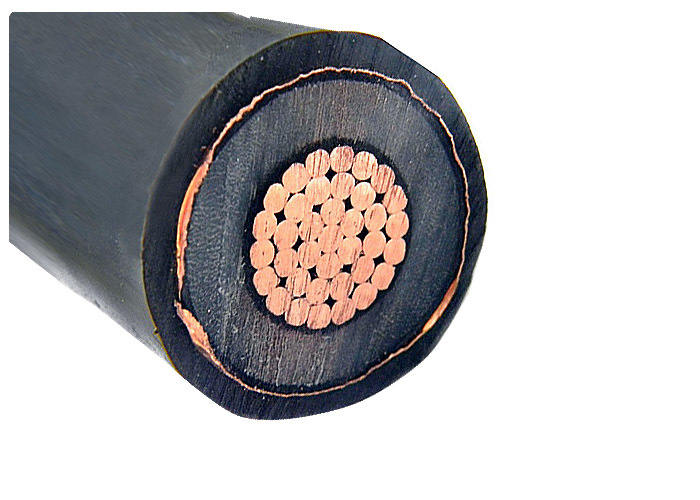

큰 이미지 :  Shenghua XLPE Insulated Power Cable 21/35kV Abrasion-Resistant IEC-Certified

제품 상세 정보:

원래 장소: 상하이, 중국
브랜드 이름: SHANCABLE
인증: ISO,CE,IEC,TUV,KEMA
모델 번호: YJLV 0.6-1KV

결제 및 배송 조건:

최소 주문 수량: 협상 가능
가격: 협상 가능
포장 세부 사항: 나무로 된 드럼
배달 시간: 10일
지불 조건: L/C,T/T
공급 능력: 100KM/Week
상세 제품 설명
종류: XLPE 절연전력케이블 특징: 저전압
지휘자 화면 :: 반도체 표본: 자유
단열재 색: 파랑, 노랗게 됩니다 장점: 경직 저항성
칼집: PVC 또는 FR-PVC 유형 ST2에서 IEC 60502, 검은 색 화면: 동 테이프
법인: 성화 그룹 브랜드: Sh 케이블
강조하다:

XLPE insulated power cable 21/35kV

,

abrasion-resistant XLPE power cable

,

IEC-certified XLPE insulated cable

Shenghua XLPE Insulated Power Cable 21/35kV | Abrasion-Resistant & IEC-Certified
Product Specifications
Attribute Value
Type XLPE Insulated Power Cable
Feature Low Voltage
Conductor Screen Semi-conductor
Sample Free
Insulation Color Yellow, Blue
Advantage Abrasion Resistance
Sheath PVC or FR-PVC type ST2 to IEC 60502, black
Screen Copper tape
Corporation Shenghua Group
Brand SH Cable
Premium XLPE Insulated Power Cables for 21/35(36)kV Applications

Shenghua's low-voltage XLPE insulated power cables (21/35(36)kV) combine cutting-edge engineering with extreme abrasion resistance, delivering reliable power transmission for industrial grids, renewable energy farms, and urban infrastructure. Trusted across 60+ countries, our cables ensure safety, efficiency, and compliance with global standards.

Market-Leading Features
  • Triple-Layer Defense System: Compact stranded aluminum conductor (IEC 60228 Class 2) reduces weight by 60% versus copper while lowering installation costs.
  • Advanced Insulation: XLPE (cross-linked polyethylene) rated for 90°C continuous operation, 130°C emergencies, and 250°C short circuits (≤5 sec) - outperforming PVC in thermal aging and chemical resistance.
  • Protective Sheath: Abrasion-resistant PVC or FR-PVC (IEC 60502 ST2) provides UV protection, flame retardancy, and mechanical durability for indoor/outdoor applications.
Engineered for Performance & Safety
  • Superior Abrasion Resistance: Reinforced sheath withstands friction from direct burial, duct pulling, and industrial wear, significantly extending cable lifespan.
  • Enhanced Fire Safety: FR-PVC sheath inhibits flame spread and reduces toxic fumes (compliant with IEC 60332/60754), critical for tunnels and crowded spaces.
Global Compliance & Certifications
  • International Standards: IEC 60502-1, GB/T 12706, with custom approvals for BS/DIN/ICEA
  • Certifications: CE, RoHS, KEMA, with LSOH (Low Smoke Zero Halogen) options available
Technical Performance Data
Conductor (mm²) Max. DC Resistance (Ω/km) Current Rating (Soil, A) Approx. Weight (kg/km) Key Application
4 × 185 0.164 305 3,091 Industrial plants/substations
4 × 400 0.0778 445 5,840 High-load renewable energy hubs
4 × 300 0.100 400 4,830 Metro tunnels & urban grids
Efficiency Highlights:
  • Ultra-low resistance (e.g., 0.0778Ω/km for 4×400mm²) reduces energy loss by 10-15%
  • Minimal bending radius (15× OD for multi-core) simplifies installation in tight spaces
Critical Applications
  • Industrial Zones: Withstands oil, chemicals, and mechanical stress; 305A soil current (4×185mm²) powers heavy machinery
  • Renewable Energy Farms: Aluminum conductors resist soil corrosion; XLPE insulation endures -40°C to 130°C
  • Urban Underground Grids: FR-PVC sheath prevents abrasion during direct burial; zero toxic fumes enhance public safety
Manufacturing Excellence
  • Scale & Quality: 5000+ employees, ISO 9001/14001 certifications, and 15,000 km/month capacity ensure batch consistency
  • Global Logistics: Wooden drum packaging for damage-free shipping; MOQ 200 meters, 30% deposit pre-production
  • Custom Solutions: Tailored configurations for extreme abrasion/chemical exposure environments
Technical Specifications
Nom. Cross-section of conductor Strands No./Dia. Of Conductor Insulation Thickness Sheath Thickness Approx. O.D. Approx. Weight Max. D.C Resistance of Conductor (20 ℃) Testing Voltage A.C Current Rating In air (A) Current Rating In soil(A)
4 × 4 1/2.25 0.7 1.8 13.0 155 7.41 3.5 27 36
